Screen assertion (Vision)

You can assert screen using screenIs function.

You can use isScreen function to getting whether the screen is displayed or not.

functions

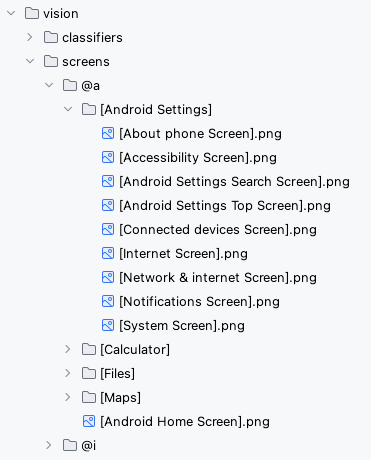

Screen image templates

Before using these functions, you have to prepare screen image templates.

See Using ScreenClassifier (Vision)

Sample code

Getting samples

ScreenIsAndIsScreen1.kt

(src/test/kotlin/tutorial/basic/ScreenIsAndIsScreen1.kt)

Screen verification by image.

    @Test
    @Order(10)
    fun screenIs_OK() {

        scenario {
            case(1) {
                condition {
                    it.macro("[Android Settings Top Screen]")
                }.expectation {
                    it.screenIs("[Android Settings Top Screen]")
                }
            }
        }
    }

    @Test
    @Order(20)
    fun screenIs_NG() {

        scenario {
            case(1) {
                condition {
                    it.macro("[Android Settings Top Screen]")
                }.expectation {
                    it.screenIs("[System Screen]")
                }
            }
        }
    }

    @Test
    @Order(30)
    fun isScreen_ifTrue() {

        scenario {
            case(1) {
                condition {
                    it.macro("[Android Settings Top Screen]")
                }.expectation {
                    it.isScreen("[Android Settings Top Screen]")
                        .ifTrue("If screen is [Android Settings Top Screen]") {
                            OK("This is [Android Settings Top Screen]")
                        }
                }
            }
        }
    }

    @Test
    @Order(40)
    fun isScreen_ifFalse() {

        scenario {
            case(1) {
                condition {
                    it.macro("[Android Settings Top Screen]")
                }.expectation {
                    it.isScreen("[System Screen]")
                        .ifFalse("If screen is not [System Screen]") {
                            OK("This is not [System Screen]")
                        }
                }
            }
        }
    }

ScreenIsAndIsScreen2.kt

(src/test/kotlin/tutorial/basic/ScreenIsAndIsScreen2.kt)

You can specify the validation logic (verifyFunc) to be called after the screen is determined.

    @Test
    @Order(10)
    fun screenIs_OK() {

        scenario {
            case(1) {
                condition {
                    it.macro("[Android Settings Top Screen]")
                }.expectation {
                    it.screenIs("[Android Settings Top Screen]") {  // OK
                        exist("Settings")           // OK (log is suppressed)
                        exist("Search settings")    // OK (log is suppressed)
                    }
                }
            }
        }
    }

    @Test
    @Order(20)
    fun screenIs_NG() {

        scenario {
            case(1) {
                condition {
                    it.macro("[Android Settings Top Screen]")
                }.expectation {
                    it.screenIs("[Android Settings Top Screen]") {    // OK
                        exist("System")     // NG (log is output)
                    }
                }
            }
        }
    }

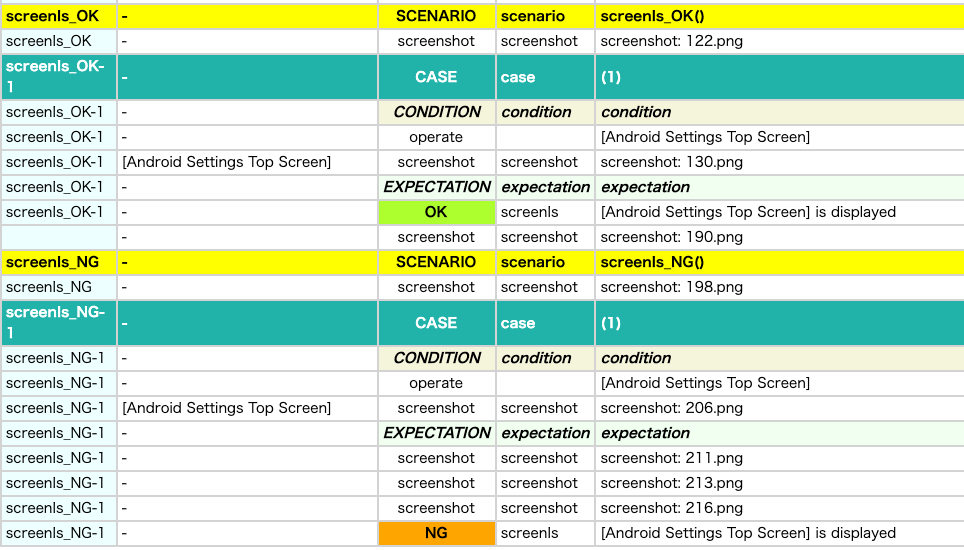

OK log is suppressed if the validation result of verifyFunc is OK.
NG is output if the validation result of verifyFunc is NG.

ScreenIsOfAndIsScreenOf1.kt

(src/test/kotlin/tutorial/basic/ScreenIsOfAndIsScreenOf1.kt)

    @Test
    @Order(10)
    fun screenIsOf_OK() {

        scenario {
            case(1) {
                condition {
                    it.macro("[Android Settings Top Screen]")
                }.expectation {
                    it.screenIsOf("[Android Settings Top Screen]")
                        .screenIsOf("[Android Settings Top Screen]", "[Network & internet Screen]", "[System Screen]")
                }
            }
        }
    }

    @Test
    @Order(20)
    fun screenIsOf_NG() {

        scenario {
            case(1) {
                condition {
                    it.macro("[Android Settings Top Screen]")
                }.expectation {
                    it.screenIsOf("[Network & internet Screen]", "[System Screen]")
                }
            }
        }
    }

    @Test
    @Order(30)
    fun isScreenOf_true() {

        scenario {
            case(1) {
                condition {
                    it.macro("[Android Settings Top Screen]")
                }.expectation {
                    it.isScreenOf("[Android Settings Top Screen]")
                        .ifTrue {
                            OK("This is [Android Settings Top Screen]")
                        }
                    it.isScreenOf("[Android Settings Top Screen]", "[Network & internet Screen]", "[System Screen]")
                        .ifTrue {
                            OK("This is of [Android Settings Top Screen],[Network & internet Screen],[System Screen]")
                        }
                }
            }
        }
    }

    @Test
    @Order(40)
    fun isScreenOf_false() {

        scenario {
            case(1) {
                condition {
                    it.macro("[Android Settings Top Screen]")
                }.expectation {
                    it.isScreenOf("[Network & internet Screen]", "[System Screen]")
                        .ifFalse {
                            OK("This is not of [Network & internet Screen],[System Screen]")
                        }
                }
            }
        }
    }
