Using DefaultClassifier (Vision)
Shirates/Vision classifies the image using DefaultClassifier.
Sample code
Classify1.kt
(src/test/kotlin/tutorial/basic/Classify1.kt)
@Test
@Order(10)
fun classify() {
scenario {
case(1) {
condition {
it.screenIs("[Android Settings Top Screen]")
}.action {
v1 = it.detect("Network & internet")
.leftItem()
s1 = v1.classify()
}.expectation {
s1.thisIs("[Network & internet Icon]", message = "label is $s1")
}
}
case(2) {
action {
s2 = v1.classifyFull()
}.expectation {
s2.thisIs(
"@a_Android Settings_Android Settings Top Screen_[Network & internet Icon]",
message = "fullLabel is $s2"
)
}
}
}
}
Right-click on classify() and select debug to run test.
Console output
140 [00:00:19] 2025/02/19 23:20:48.261 {classify-1} 0 - [info] +246 ! () 139_[138.png]_recognized_text_rectangles.png
141 [00:00:19] 2025/02/19 23:20:48.444 {classify-1} 0 - [info] +183 ! () [detect] in 1.874 sec
2025-02-19 23:20:48.464 java[31276:424563] +[IMKClient subclass]: chose IMKClient_Modern
2025-02-19 23:20:48.464 java[31276:424563] +[IMKInputSession subclass]: chose IMKInputSession_Modern
142 [00:00:19] 2025/02/19 23:20:48.490 {classify-1} 0 - [info] +46 ! () [SegmentContainer] in 0.043 sec
143 [00:00:19] 2025/02/19 23:20:48.502 {classify-1} 0 - [info] +12 ! () [split screenshot into segments] in 0.056 sec
144 [00:00:20] 2025/02/19 23:20:49.012 {classify-1} 0 - [info] +510 ! () [SegmentContainer] in 0.507 sec
145 [00:00:20] 2025/02/19 23:20:49.088 {classify-1} 0 - [info] +76 ! () split screenshot into segments. visionElements:1
146 [00:00:20] 2025/02/19 23:20:49.091 {classify-1} 0 - [info] +3 ! () [rightLeftCore] in 0.645 sec
147 [00:00:20] 2025/02/19 23:20:49.093 {classify-1} 0 - [info] +2 ! () <Network & internet>_leftItem.png
148 [00:00:20] 2025/02/19 23:20:49.168 {classify-1} 0 - [info] +75 ! () [ImageClassifier/classifyImage] in 0.072 sec
149 [00:00:20] 2025/02/19 23:20:49.170 {classify-1} 0 - [EXPECTATION] +2 ! () expectation
150 [00:00:20] 2025/02/19 23:20:49.172 {classify-1} 0 - [OK] +2 ! (thisIs) label is [Network & internet Icon]
151 [00:00:20] 2025/02/19 23:20:49.173 {classify-2} 0 - [CASE] +1 ! () (2)
152 [00:00:20] 2025/02/19 23:20:49.187 {classify-2} 0 - [ACTION] +14 ! () action
153 [00:00:20] 2025/02/19 23:20:49.252 {classify-2} 0 - [info] +65 ! () [ImageClassifier/classifyImage] in 0.063 sec
154 [00:00:20] 2025/02/19 23:20:49.253 {classify-2} 0 - [EXPECTATION] +1 ! () expectation
155 [00:00:20] 2025/02/19 23:20:49.255 {classify-2} 0 - [OK] +2 ! (thisIs) fullLabel is @a_Android Settings_Android Settings Top Screen_[Network & internet Icon]
TestResults
You got test results files in TestResults directory(~/Downloads/TestResults is default).
fullLabel and label

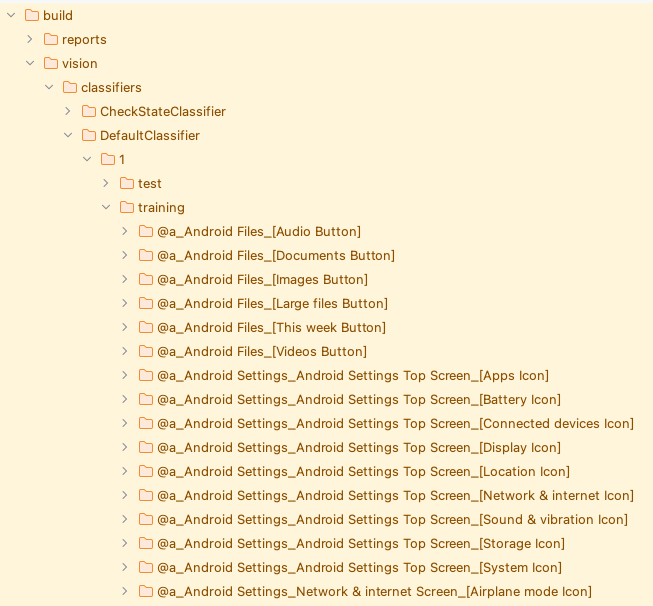

Open the directory build/vision/classifiers/DefaultClassifier/training.
fullLabel is the full description of the label.
@a_Android Settings_Android Settings Top Screen_[Network & internet Icon]
label is the short description.
[Network & internet Icon]
ImageIs1.kt
(src/test/kotlin/tutorial/basic/ImageIs1.kt)
@Test
@Order(10)
fun imageIs() {
scenario {
case(1) {
condition {
it.screenIs("[Android Settings Top Screen]")
}.action {
v1 = it.detect("Network & internet")
.leftItem()
}.expectation {
v1.imageIs("[Network & internet Icon]")
}
}
case(2) {
expectation {
v1.imageFullLabelIs("@a_Android Settings_Android Settings Top Screen_[Network & internet Icon]")
}
}
}
}
Right-click on imageIs() and select debug to run test.
Console output
156 [00:01:06] 2025/02/19 23:28:28.452 {imageIs-1} 0 - [EXPECTATION] +1 ! () expectation
157 [00:01:06] 2025/02/19 23:28:28.455 {imageIs-1} 0 - [info] +3 ! (imageIs) <Network & internet>_leftItem.png
158 [00:01:06] 2025/02/19 23:28:28.521 {imageIs-1} 0 - [info] +66 ! (imageIs) [ImageClassifier/classifyImage] in 0.063 sec
159 [00:01:06] 2025/02/19 23:28:28.524 {imageIs-1} 0 - [info] +3 ! (imageIs) label: [Network & internet Icon]
160 [00:01:06] 2025/02/19 23:28:28.526 {imageIs-1} 0 - [info] +2 ! (imageIs) 159_text_ "", bounds_ [84,868][147,913] width=64, height=46, centerX=116, centerY=891, rect_ [84, 868, 147, 913](w=64, h=46).png
161 [00:01:06] 2025/02/19 23:28:28.532 {imageIs-1} 0 - [OK] +6 ! (imageIs) Image of <Network & internet>:leftItem is [Network & internet Icon]
162 [00:01:06] 2025/02/19 23:28:28.532 {imageIs-2} 0 - [CASE] +0 ! () (2)
163 [00:01:06] 2025/02/19 23:28:28.533 {imageIs-2} 0 - [EXPECTATION] +1 ! () expectation
164 [00:01:06] 2025/02/19 23:28:28.580 {imageIs-2} 0 - [info] +47 ! (imageFullLabelIs) [ImageClassifier/classifyImage] in 0.046 sec
165 [00:01:06] 2025/02/19 23:28:28.583 {imageIs-2} 0 - [info] +3 ! (imageFullLabelIs) fullLabel: @a_Android Settings_Android Settings Top Screen_[Network & internet Icon]
166 [00:01:06] 2025/02/19 23:28:28.587 {imageIs-2} 0 - [info] +4 ! (imageFullLabelIs) 165_text_ "", bounds_ [84,868][147,913] width=64, height=46, centerX=116, centerY=891, rect_ [84, 868, 147, 913](w=64, h=46).png
167 [00:01:06] 2025/02/19 23:28:28.589 {imageIs-2} 0 - [OK] +2 ! (imageFullLabelIs) Image fullLabel of <Network & internet>:leftItem is @a_Android Settings_Android Settings Top Screen_[Network & internet Icon]
FindImage1.kt
(src/test/kotlin/tutorial/basic/FindImage1.kt)
@Test
@Order(10)
fun findImage() {
scenario {
case(1) {
condition {
it.macro("[Android Settings Top Screen]")
}.action {
withScrollDown {
v1 = it.findImage("[Network & internet Icon]")
v2 = it.findImage("[Display Icon]")
}
}.expectation {
v1.isFound.thisIsTrue("[Network & internet Icon] is found.")
v2.isFound.thisIsTrue("[Display Icon] is found.")
}
}
}
}
Running test
- Set
osintestrun.global.propertiesto run as android (default is android).
## OS --------------------
#os=ios
- Right-click on
findImage()and selectdebugto run test.
Console output
126 [00:00:20] 2025/01/28 16:14:35.571 {findImage-1} 0 - [ACTION] +3390 ! () action
127 [00:00:20] 2025/01/28 16:14:35.574 {findImage-1} 0 - [info] +3 ! () Trying to find image with scroll. (label="[Network & internet Icon]")
128 [00:00:20] 2025/01/28 16:14:35.761 {findImage-1} 0 - [info] +187 ! () 127_[0, 0, 1079, 2399](w=1080, h=2400).png
129 [00:00:21] 2025/01/28 16:14:36.100 {findImage-1} 0 - [info] +339 ! () normalized_template_img.png
130 [00:00:23] 2025/01/28 16:14:38.305 {findImage-1} 0 - [info] +2205 ! () [findImage] in 2.731 sec
131 [00:00:23] 2025/01/28 16:14:38.308 {findImage-1} 0 - [info] +3 ! () Trying to find image with scroll. (label="[Display Icon]")
132 [00:00:23] 2025/01/28 16:14:38.442 {findImage-1} 0 - [info] +134 ! () 131_[0, 0, 1079, 2399](w=1080, h=2400).png
133 [00:00:23] 2025/01/28 16:14:38.541 {findImage-1} 0 - [info] +99 ! () normalized_template_img.png
134 [00:00:25] 2025/01/28 16:14:40.018 {findImage-1} 0 - [info] +1477 ! () findImage("[Display Icon]") not found. (distance 0.61345655 > 0.1)
135 [00:00:25] 2025/01/28 16:14:40.020 {findImage-1} 0 - [operate] +2 ! (scrollDown) Scroll down
136 [00:00:29] 2025/01/28 16:14:44.178 {findImage-1} 0 - [info] +4158 ! () endOfScroll=false
137 [00:00:29] 2025/01/28 16:14:44.180 {findImage-1} 0 - [info] +2 ! () 136_[0, 0, 1079, 2399](w=1080, h=2400).png
138 [00:00:29] 2025/01/28 16:14:44.259 {findImage-1} 0 - [info] +79 ! () normalized_template_img.png
139 [00:00:31] 2025/01/28 16:14:46.636 {findImage-1} 0 - [info] +2377 ! () [findImage] in 8.328 sec
140 [00:00:31] 2025/01/28 16:14:46.640 {findImage-1} 0 - [EXPECTATION] +4 ! () expectation
141 [00:00:31] 2025/01/28 16:14:46.643 {findImage-1} 0 - [OK] +3 ! (thisIsTrue) [Network & internet Icon] is found.
142 [00:00:31] 2025/01/28 16:14:46.644 {findImage-1} 0 - [OK] +1 ! (thisIsTrue) [Display Icon] is found.
