Learning images (Vision)
Shirates/Vision integrates machine learning tool(CreateML) in test running process.
You can utilize the power of image classification in your test code.
Just put template image files in labeled directories of classifiers.
DefaultClassifier
DefaultClassifier is an image classifier for template matching.
The name of parent directory of the image corresponds to the label.
A label directory has at least one child image file. Basically you may prepare one image file for one label.
Label name is arbitrary, but we recommend notation like [Nickname].

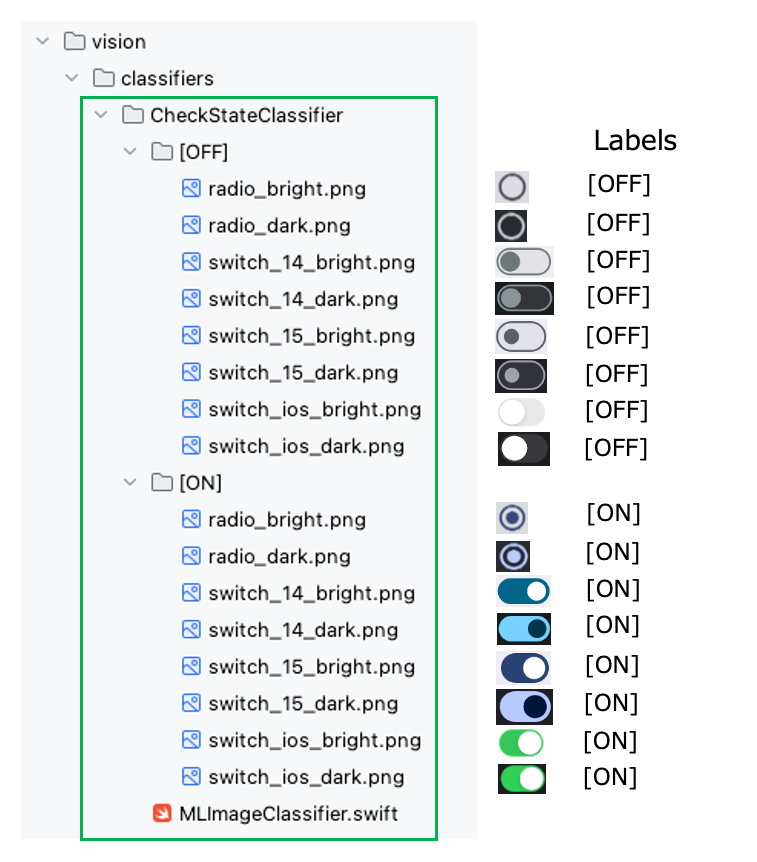

CheckStateClassifier
CheckStateClassifier is the classifier for toggle widget states. This classifier has only two label ([ON] and [OFF]).
In above example, radio button and switch is supported.
If you want to support checkbox state, append images into [ON]/[OFF] directory and run learning.
Running learning
To run learning explicitly
Right-click CreateMlExecute (src/test/kotlin/batch/CreateMLExecute.kt) and select Debug 'CreateMLExecute'.
Note
You don’t have to run learning explicitly. Learning is executed on demand when you start run your test.
Console output
Connected to the target VM, address: '127.0.0.1:60450', transport: 'socket'
lineNo [elapsedTime] logDateTime {testCaseId} macroDepth macroName [logType] timeDiff mode (group) message
1 [00:00:00] 2025/04/23 04:22:40.200 {} 0 - [info] +0 C () Classifier files loaded.(CheckStateClassifier, 2 labels, directory=/Users/wave1008/github/ldi-github/shirates-core-vision-samples_en/build/vision/classifiers/CheckStateClassifier/1)
Copying jar content createml/MLImageClassifier.swift to /Users/wave1008/Downloads/TestResults/2025-04-23_042239
2 [00:00:00] 2025/04/23 04:22:40.535 {} 0 - [info] +335 C () Starting leaning. [CheckStateClassifier]
3 [00:00:03] 2025/04/23 04:22:43.062 {} 0 - [info] +2527 C () Learning completed. ([swift /Users/wave1008/github/ldi-github/shirates-core-vision-samples_en/build/vision/classifiers/CheckStateClassifier/1/MLImageClassifier.swift /Users/wave1008/github/ldi-github/shirates-core-vision-samples_en/build/vision/classifiers/CheckStateClassifier/1 -noise -blur] in 2.513 sec)
["/Users/wave1008/github/ldi-github/shirates-core-vision-samples_en/build/vision/classifiers/CheckStateClassifier/1/MLImageClassifier.swift", "/Users/wave1008/github/ldi-github/shirates-core-vision-samples_en/build/vision/classifiers/CheckStateClassifier/1", "-noise", "-blur"]
----------------------------------
dataSourceName: 1
dataSourcePath: file:///Users/wave1008/github/ldi-github/shirates-core-vision-samples_en/build/vision/classifiers/CheckStateClassifier/1/
options: ["-noise", "-blur"]
featureExtractor: Image Feature Print V2
----------------------------------
Number of examples: 16
Number of classes: 2
Accuracy: 100.00%
******CONFUSION MATRIX******
----------------------------------
True\Pred [OFF] [ON]
[OFF] 8 0
[ON] 0 8
******PRECISION RECALL******
----------------------------------
Class Precision(%) Recall(%)
[OFF] 100.00 100.00
[ON] 100.00 100.00
Model saved to /Users/wave1008/github/ldi-github/shirates-core-vision-samples_en/build/vision/classifiers/CheckStateClassifier/1/1.mlmodel
4 [00:00:03] 2025/04/23 04:22:43.082 {} 0 - [info] +20 C () Classifier files loaded.(ScreenClassifier, 20 labels, directory=/Users/wave1008/github/ldi-github/shirates-core-vision-samples_en/build/vision/classifiers/ScreenClassifier/1)
Copying jar content createml/MLImageClassifier.swift to /Users/wave1008/Downloads/TestResults/2025-04-23_042239
5 [00:00:05] 2025/04/23 04:22:45.000 {} 0 - [info] +1918 C () Starting leaning. [ScreenClassifier]
6 [00:00:07] 2025/04/23 04:22:47.519 {} 0 - [info] +2519 C () Learning completed. ([swift /Users/wave1008/github/ldi-github/shirates-core-vision-samples_en/build/vision/classifiers/ScreenClassifier/1/MLImageClassifier.swift /Users/wave1008/github/ldi-github/shirates-core-vision-samples_en/build/vision/classifiers/ScreenClassifier/1 -noise -blur] in 2.519 sec)
["/Users/wave1008/github/ldi-github/shirates-core-vision-samples_en/build/vision/classifiers/ScreenClassifier/1/MLImageClassifier.swift", "/Users/wave1008/github/ldi-github/shirates-core-vision-samples_en/build/vision/classifiers/ScreenClassifier/1", "-noise", "-blur"]
----------------------------------
dataSourceName: 1
dataSourcePath: file:///Users/wave1008/github/ldi-github/shirates-core-vision-samples_en/build/vision/classifiers/ScreenClassifier/1/
options: ["-noise", "-blur"]
featureExtractor: Image Feature Print V2
----------------------------------
Number of examples: 20
Number of classes: 19
Accuracy: 100.00%
******CONFUSION MATRIX******
----------------------------------
True\Pred @a_Android Settings_[About phone Screen] @a_Android Settings_[Accessibility Screen] @a_Android Settings_[Android Settings Search Screen] @a_Android Settings_[Android Settings Top Screen] @a_Android Settings_[Battery Screen] @a_Android Settings_[Connected devices Screen] @a_Android Settings_[Internet Screen] @a_Android Settings_[Network & internet Screen] @a_Android Settings_[Notifications Screen] @a_Android Settings_[System Screen] @a_Android_[Android Home Screen] @a_Calculator_[Calculator Main Screen] @a_Files_[Files Top Screen] @a_Maps_[Maps Top Screen] @i_iOS Settings_[About Screen] @i_iOS Settings_[Developer Screen] @i_iOS Settings_[General Screen] @i_iOS Settings_[iOS Settings Top Screen] @i_iOS_[iOS Home Screen]
@a_Android Settings_[About phone Screen] 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
@a_Android Settings_[Accessibility Screen] 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
@a_Android Settings_[Android Settings Search Screen] 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
@a_Android Settings_[Android Settings Top Screen] 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
@a_Android Settings_[Battery Screen] 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0
@a_Android Settings_[Connected devices Screen] 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0
@a_Android Settings_[Internet Screen] 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0
@a_Android Settings_[Network & internet Screen] 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0
@a_Android Settings_[Notifications Screen] 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0
@a_Android Settings_[System Screen] 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0
@a_Android_[Android Home Screen] 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0
@a_Calculator_[Calculator Main Screen] 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0
@a_Files_[Files Top Screen] 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0
@a_Maps_[Maps Top Screen] 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0
@i_iOS Settings_[About Screen] 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0
@i_iOS Settings_[Developer Screen] 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0
@i_iOS Settings_[General Screen] 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0
@i_iOS Settings_[iOS Settings Top Screen] 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 2 0
@i_iOS_[iOS Home Screen] 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1
******PRECISION RECALL******
----------------------------------
Class Precision(%) Recall(%)
@a_Android Settings_[About phone Screen] 100.00 100.00
@a_Android Settings_[Accessibility Screen] 100.00 100.00
@a_Android Settings_[Android Settings Search Screen] 100.00 100.00
@a_Android Settings_[Android Settings Top Screen] 100.00 100.00
@a_Android Settings_[Battery Screen] 100.00 100.00
@a_Android Settings_[Connected devices Screen] 100.00 100.00
@a_Android Settings_[Internet Screen] 100.00 100.00
@a_Android Settings_[Network & internet Screen] 100.00 100.00
@a_Android Settings_[Notifications Screen] 100.00 100.00
@a_Android Settings_[System Screen] 100.00 100.00
@a_Android_[Android Home Screen] 100.00 100.00
@a_Calculator_[Calculator Main Screen] 100.00 100.00
@a_Files_[Files Top Screen] 100.00 100.00
@a_Maps_[Maps Top Screen] 100.00 100.00
@i_iOS Settings_[About Screen] 100.00 100.00
@i_iOS Settings_[Developer Screen] 100.00 100.00
@i_iOS Settings_[General Screen] 100.00 100.00
@i_iOS Settings_[iOS Settings Top Screen] 100.00 100.00
@i_iOS_[iOS Home Screen] 100.00 100.00
Model saved to /Users/wave1008/github/ldi-github/shirates-core-vision-samples_en/build/vision/classifiers/ScreenClassifier/1/1.mlmodel
7 [00:00:07] 2025/04/23 04:22:47.542 {} 0 - [info] +23 C () Classifier files loaded.(DefaultClassifier, 32 labels, directory=/Users/wave1008/github/ldi-github/shirates-core-vision-samples_en/build/vision/classifiers/DefaultClassifier/1)
Copying jar content createml/MLImageClassifier.swift to /Users/wave1008/Downloads/TestResults/2025-04-23_042239
8 [00:00:08] 2025/04/23 04:22:47.815 {} 0 - [info] +273 C () Starting leaning. [DefaultClassifier]
9 [00:00:11] 2025/04/23 04:22:50.826 {} 0 - [info] +3011 C () Learning completed. ([swift /Users/wave1008/github/ldi-github/shirates-core-vision-samples_en/build/vision/classifiers/DefaultClassifier/1/MLImageClassifier.swift /Users/wave1008/github/ldi-github/shirates-core-vision-samples_en/build/vision/classifiers/DefaultClassifier/1 -noise -blur] in 3.011 sec)
["/Users/wave1008/github/ldi-github/shirates-core-vision-samples_en/build/vision/classifiers/DefaultClassifier/1/MLImageClassifier.swift", "/Users/wave1008/github/ldi-github/shirates-core-vision-samples_en/build/vision/classifiers/DefaultClassifier/1", "-noise", "-blur"]
----------------------------------
dataSourceName: 1
dataSourcePath: file:///Users/wave1008/github/ldi-github/shirates-core-vision-samples_en/build/vision/classifiers/DefaultClassifier/1/
options: ["-noise", "-blur"]
featureExtractor: Image Feature Print V2
----------------------------------
Number of examples: 33
Number of classes: 32
Accuracy: 100.00%
******CONFUSION MATRIX******
**** (upperleft 20-by-20) ****
----------------------------------
True\Pred @a_Android Files_[Audio Button] @a_Android Files_[Documents Button] @a_Android Files_[Images Button] @a_Android Files_[Large files Button] @a_Android Files_[This week Button] @a_Android Files_[Videos Button] @a_Android Settings_Android Settings Top Screen_[Apps Icon] @a_Android Settings_Android Settings Top Screen_[Battery Icon] @a_Android Settings_Android Settings Top Screen_[Connected devices Icon] @a_Android Settings_Android Settings Top Screen_[Display Icon] @a_Android Settings_Android Settings Top Screen_[Location Icon] @a_Android Settings_Android Settings Top Screen_[Network & internet Icon] @a_Android Settings_Android Settings Top Screen_[Sound & vibration Icon] @a_Android Settings_Android Settings Top Screen_[Storage Icon] @a_Android Settings_Android Settings Top Screen_[System Icon] @a_Android Settings_Network & internet Screen_[Airplane mode Icon] @a_Android Settings_Network & internet Screen_[Calls & SMS Icon] @a_Android Settings_Network & internet Screen_[Data Saver Icon] @a_Android Settings_Network & internet Screen_[Hotspot & tethering Icon] @a_Android Settings_Network & internet Screen_[Internet Icon]
@a_Android Files_[Audio Button] 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
@a_Android Files_[Documents Button] 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
@a_Android Files_[Images Button] 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
@a_Android Files_[Large files Button] 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
@a_Android Files_[This week Button] 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
@a_Android Files_[Videos Button] 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0
@a_Android Settings_Android Settings Top Screen_[Apps Icon] 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0
@a_Android Settings_Android Settings Top Screen_[Battery Icon] 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0
@a_Android Settings_Android Settings Top Screen_[Connected devices Icon] 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0
@a_Android Settings_Android Settings Top Screen_[Display Icon] 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0
@a_Android Settings_Android Settings Top Screen_[Location Icon] 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0
@a_Android Settings_Android Settings Top Screen_[Network & internet Icon] 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0
@a_Android Settings_Android Settings Top Screen_[Sound & vibration Icon] 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0
@a_Android Settings_Android Settings Top Screen_[Storage Icon] 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0
@a_Android Settings_Android Settings Top Screen_[System Icon] 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0
@a_Android Settings_Network & internet Screen_[Airplane mode Icon] 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0
@a_Android Settings_Network & internet Screen_[Calls & SMS Icon] 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0
@a_Android Settings_Network & internet Screen_[Data Saver Icon] 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0
@a_Android Settings_Network & internet Screen_[Hotspot & tethering Icon] 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0
@a_Android Settings_Network & internet Screen_[Internet Icon] 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1
******PRECISION RECALL******
----------------------------------
Class Precision(%) Recall(%)
@a_Android Files_[Audio Button] 100.00 100.00
@a_Android Files_[Documents Button] 100.00 100.00
@a_Android Files_[Images Button] 100.00 100.00
@a_Android Files_[Large files Button] 100.00 100.00
@a_Android Files_[This week Button] 100.00 100.00
@a_Android Files_[Videos Button] 100.00 100.00
@a_Android Settings_Android Settings Top Screen_[Apps Icon] 100.00 100.00
@a_Android Settings_Android Settings Top Screen_[Battery Icon] 100.00 100.00
@a_Android Settings_Android Settings Top Screen_[Connected devices Icon] 100.00 100.00
@a_Android Settings_Android Settings Top Screen_[Display Icon] 100.00 100.00
@a_Android Settings_Android Settings Top Screen_[Location Icon] 100.00 100.00
@a_Android Settings_Android Settings Top Screen_[Network & internet Icon] 100.00 100.00
@a_Android Settings_Android Settings Top Screen_[Sound & vibration Icon] 100.00 100.00
@a_Android Settings_Android Settings Top Screen_[Storage Icon] 100.00 100.00
@a_Android Settings_Android Settings Top Screen_[System Icon] 100.00 100.00
@a_Android Settings_Network & internet Screen_[Airplane mode Icon] 100.00 100.00
@a_Android Settings_Network & internet Screen_[Calls & SMS Icon] 100.00 100.00
@a_Android Settings_Network & internet Screen_[Data Saver Icon] 100.00 100.00
@a_Android Settings_Network & internet Screen_[Hotspot & tethering Icon] 100.00 100.00
@a_Android Settings_Network & internet Screen_[Internet Icon] 100.00 100.00
@a_Android Settings_Network & internet Screen_[SIMs Icon] 100.00 100.00
@a_Android Settings_Network & internet Screen_[VPN Icon] 100.00 100.00
@a_misc_[RadioButton(OFF)] 100.00 100.00
@a_misc_[RadioButton(ON)] 100.00 100.00
@a_misc_[←] 100.00 100.00
@i_iOS Settings_[Accessibility Icon] 100.00 100.00
@i_iOS Settings_[Action Button Icon] 100.00 100.00
@i_iOS Settings_[Apple Intelligence & Siri Icon] 100.00 100.00
@i_iOS Settings_[Camera Icon] 100.00 100.00
@i_iOS Settings_[Developer Icon] 100.00 100.00
@i_iOS Settings_[General Icon] 100.00 100.00
@i_iOS Settings_[Screen Time Icon] 100.00 100.00
Model saved to /Users/wave1008/github/ldi-github/shirates-core-vision-samples_en/build/vision/classifiers/DefaultClassifier/1/1.mlmodel
Disconnected from the target VM, address: '127.0.0.1:60450', transport: 'socket'
Process finished with exit code 0

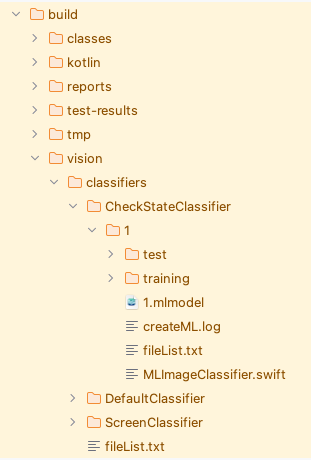

build/vision/classifiers
Result files are output at build/vision/classifiers.
1.mlmodel
This is the result mlmodel file.
createML.log
This is the console log (see above Console output).
MLImageClassifier.swift
This is the running script.
import CreateML
import Foundation
let arguments = CommandLine.arguments
print(arguments)
if arguments.count < 2 {
print("path to data source is required")
exit(1)
}
let options = arguments.filter { $0.starts(with: "-") }
var revision = 2
if let opt = options.first(where: { $0.starts(with: "-fp:")}) {
if let r = Int(opt.components(separatedBy: [":","="]).last!) {
revision = r
}
}
let dataSourcePath = arguments[1]
let dataSourceURL = URL(fileURLWithPath: dataSourcePath)
let dataSourceName = dataSourceURL.lastPathComponent
print("----------------------------------")
print("dataSourceName: \(dataSourceName)")
print("dataSourcePath: \(dataSourceURL)")
print("options: \(options)")
print("featureExtractor: Image Feature Print V\(revision)")
// data source URLs
let trainingDataURL = dataSourceURL.appending(path: "training")
let testingDataURL = dataSourceURL.appending(path: "test")
// data sources
let trainingData = MLImageClassifier.DataSource.labeledDirectories(at: trainingDataURL)
let testingData = MLImageClassifier.DataSource.labeledDirectories(at: testingDataURL)
// model parameters
var augmentation = MLImageClassifier.ImageAugmentationOptions()
if options.contains("-noise") {
augmentation.insert(.noise)
}
if options.contains("-blur") {
augmentation.insert(.blur)
}
if options.contains("-crop") {
augmentation.insert(.crop)
}
if options.contains("-exposure") {
augmentation.insert(.exposure)
}
if options.contains("-flip") {
augmentation.insert(.flip)
}
if options.contains("-rotation") {
augmentation.insert(.rotation)
}
let modelParameters = MLImageClassifier.ModelParameters(
validation: .split(strategy: .automatic),
augmentation: augmentation,
algorithm: .transferLearning(
featureExtractor: .scenePrint(revision: revision),
classifier: .logisticRegressor
)
)
// training
let classifier = try MLImageClassifier(trainingData: trainingData, parameters: modelParameters)
// evaluation
let evaluation = classifier.evaluation(on: testingData)
print("\(evaluation)")
// save
var parent = dataSourceURL
parent.deleteLastPathComponent()
parent.append(path: "models")
let modelURL = URL(fileURLWithPath: "\(dataSourcePath)/\(dataSourceName).mlmodel")
try classifier.write(to: modelURL)
print("Model saved to \(modelURL.path)")
