Using Screen Builder (Classic)

You can make it easy to create screen nickname file with Screen Builder.

Getting Screen Builder (Shirates Builder)

Get from GitHub repository. https://github.com/ldi-github/shirates-builder

git clone https://github.com/ldi-github/shirates-builder.git

Launching Screen Builder

  1. Open shirates-builder project with IntelliJ IDEA.

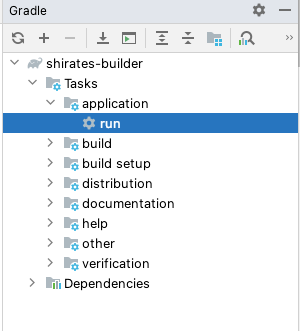

  2. Run app.

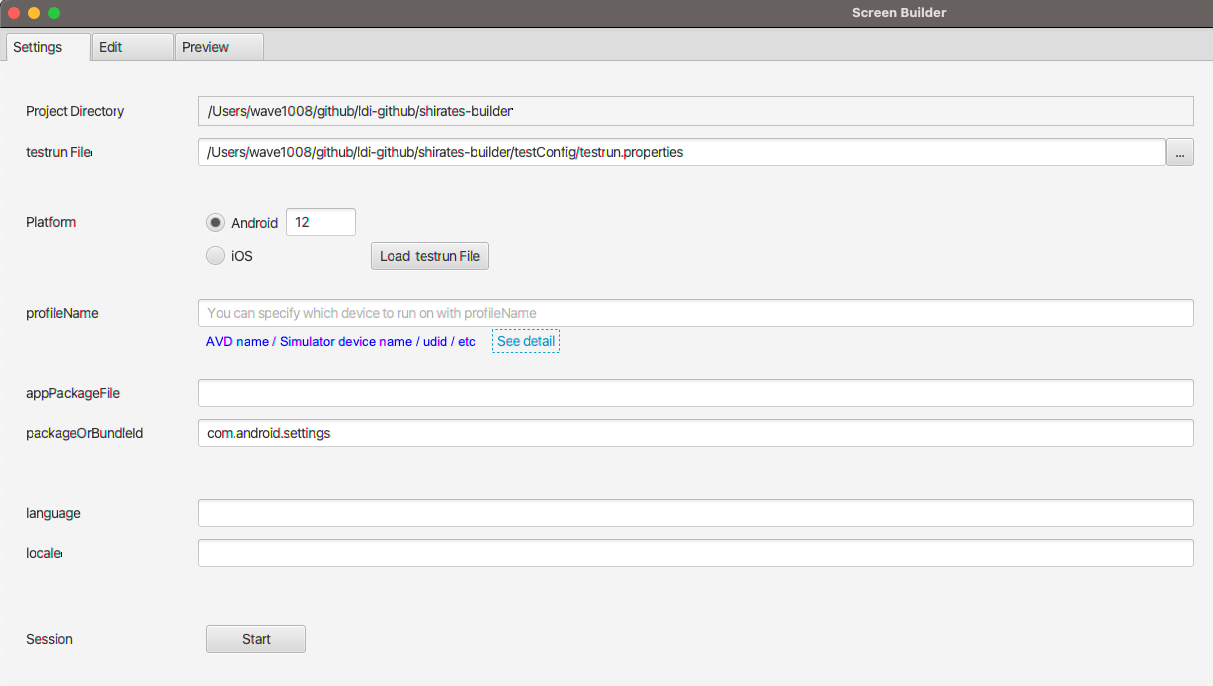

Starting recording session (in Settings tab)

  1. Set testrun File field. Drag & Drop is available.
  2. Select platform (Android/iOS).
  3. Click [Load testrun File].
  4. Set packageOrBundleId.
  5. Click [Start] button to launch the device.

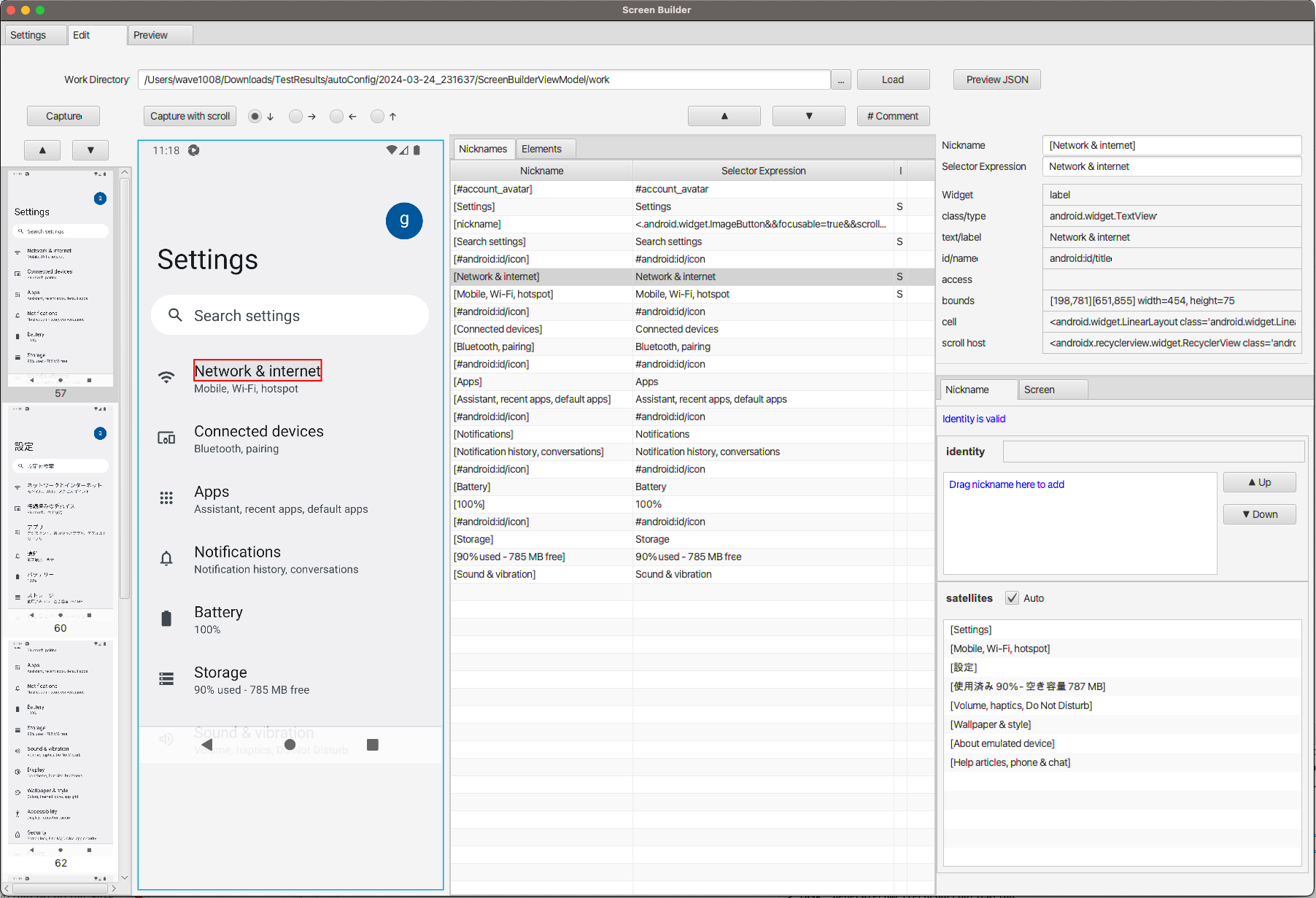

Capturing screen (in Edit tab)

  1. Click [Capture] button or [Capture with scroll] button.

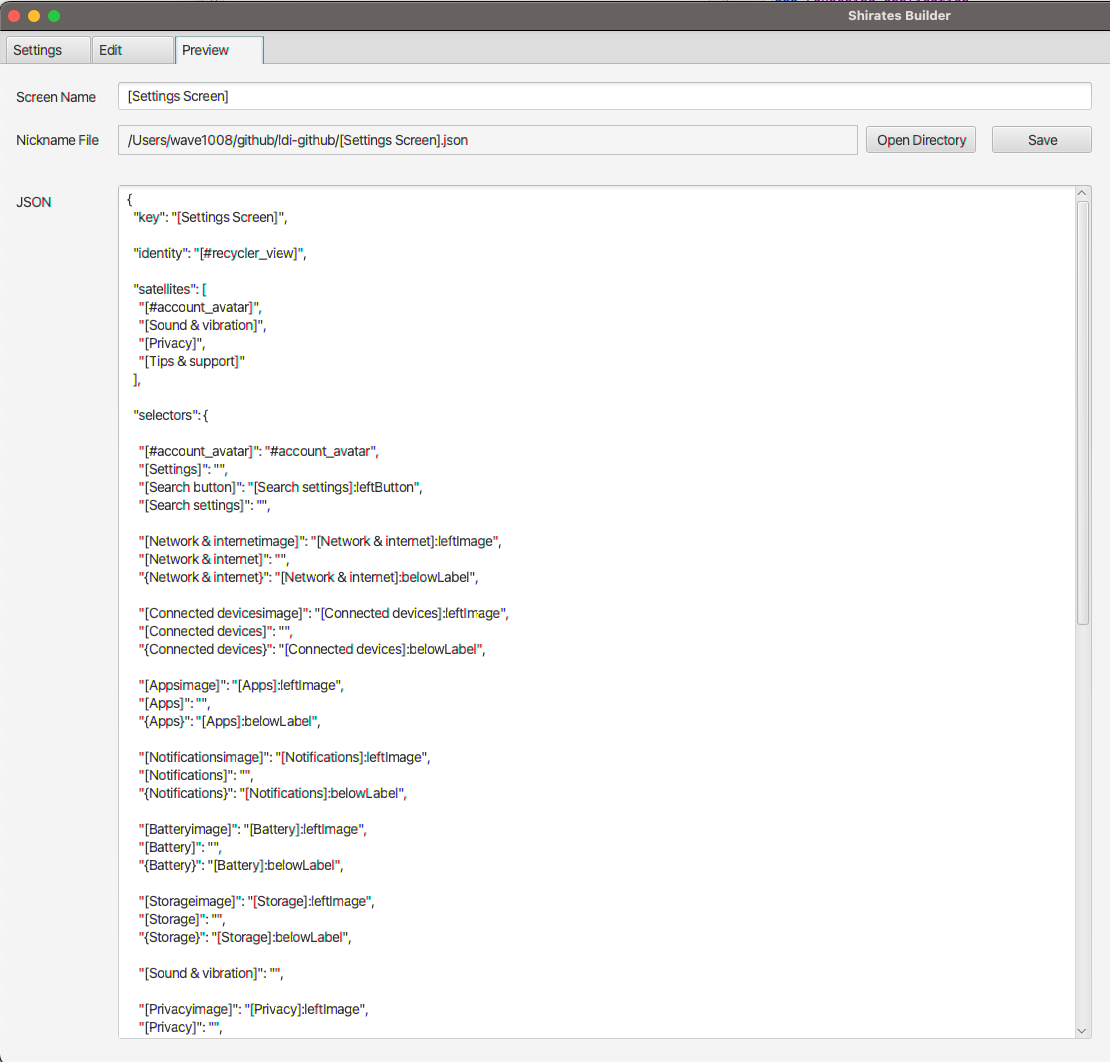

Preview JSON (in Preview tab)

  1. See Preview tab.

Defining Nicknames

  1. Click an element on the image. It will be focused with red rectangle.

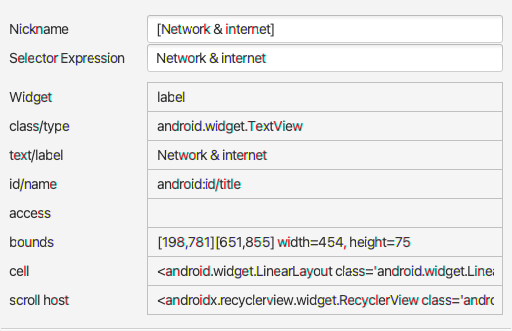

  2. You can edit the nickname.

Converting the element to relative selector

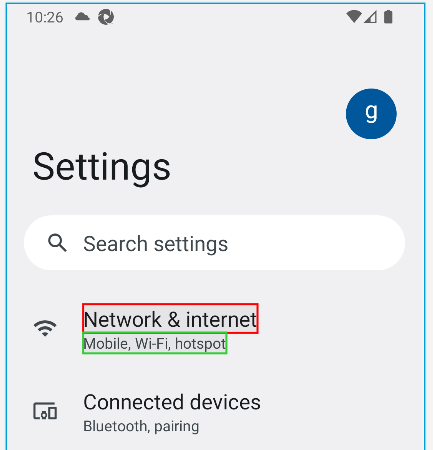

  1. Click the base element to select. (red rectangle)
  2. Ctrl+Click the element that you want to convert to relative element of the base element. (green rectangle)

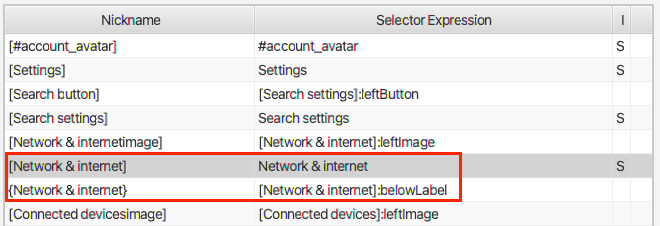

    {Network & internet} is relative selector.
